How to Replace a Water Heater Anode Rod: Step-by-Step DIY Guide to Extend Your Tanks Life

Replacing a water heater anode rod is a straightforward DIY task that takes 1 to 2 hours and requires only basic tools, including a 1-1/16″ socket wrench, Teflon tape, and a replacement anode rod matched to your tank’s model. The process involves shutting off power or gas, relieving pressure, draining a small amount of water, locating the anode rod port, removing the old rod, and threading in the new one with fresh Teflon tape. When done correctly, this single maintenance step can extend your water heater’s lifespan by 5 to 10 years and prevent costly tank failures.

Understanding what an anode rod does helps you appreciate why this task matters. An anode rod is a sacrificial metal rod, typically made from magnesium, aluminum, or zinc-alloy, that sits inside your water heater tank and corrodes in place of the steel tank walls. Without it, the tank itself would rust from the inside out, leading to leaks and premature failure within just a few years. Replacing a worn anode rod is one of the highest-return maintenance tasks a homeowner can perform on any tank-style water heater.

Knowing when to act is just as important as knowing how. Your anode rod likely needs replacement if your hot water smells like rotten eggs, the water runs rust-colored, you hear popping or rumbling noises from the tank, or the heater is more than 3 to 5 years old without an inspection. Most manufacturers recommend inspecting the anode rod every 1 to 3 years and replacing it every 3 to 5 years, depending on water quality and usage. Catching a depleted anode rod early costs far less than replacing an entire failed water heater.

How Do You Replace a Water Heater Anode Rod Step by Step?

Replacing a water heater anode rod follows a clear, 6-step process: gather tools, shut off the heater and water supply, relieve pressure, drain partially, remove the old rod, and install the new rod with Teflon tape sealed threads. The entire procedure requires no special plumbing skills and typically takes between 60 and 90 minutes for a first-time DIYer. Below, each phase of the replacement is broken down into precise, actionable steps so you can complete the job safely and confidently.

Dưới đây is the full step-by-step DIY guide to replacing your water heater anode rod, organized from preparation through final testing:

What Tools and Materials Do You Need to Replace an Anode Rod?

You need a 1-1/16″ socket wrench or impact wrench, a breaker bar for extra leverage, Teflon (PTFE) tape, a bucket, a garden hose, work gloves, and a flashlight to successfully replace a water heater anode rod. Having every item ready before you start prevents mid-job interruptions and keeps the process efficient.

Cụ thể, here is the complete tool and materials checklist:

Tools:

• 1-1/16″ (27mm) six-point socket wrench — the standard size for most residential anode rods
• Breaker bar or impact wrench — essential when the rod has not been removed for several years and is seized in place
• Adjustable wrench or pipe wrench — for stabilizing the tank nipple if needed
• Flashlight or headlamp — to see inside the port clearly
• Work gloves — to protect hands from sharp rod edges and hot surfaces
• Garden hose — to route drained water away from the work area
• Bucket — to catch residual water during removal

Replacement Anode Rod Selection:

• Match the thread size and length to your tank’s manufacturer specifications (check owner’s manual or tank label)
• Magnesium anode rods offer the highest corrosion protection and are best for soft water areas
• Aluminum anode rods are more durable and cost-effective for hard water conditions
• Zinc-alloy (zinc/aluminum) anode rods are recommended when hot water has a sulfur or rotten-egg odor
• Teflon (PTFE) tape: use a minimum of 3 to 4 full wraps around the threads before installation to ensure a watertight seal

Pro tip: If your tank uses a combo anode rod (integrated into the hot water outlet port), you must purchase the correct combo-style replacement. Installing a standard anode rod in a combo port will void the tank warranty on many Rheem and Bradford White models.

According to a 2021 consumer durability report by the Water Quality Research Foundation, homeowners who maintain their anode rods on schedule save an average of $800 to $1,200 in avoided water heater replacement costs over a 10-year period.

How Do You Safely Drain and Access the Anode Rod on a Water Heater?

Safely accessing the anode rod requires four preparation steps: cutting power or gas to the heater, closing the cold water supply valve, opening a hot water tap to relieve pressure, and draining 2 to 4 gallons of water from the tank’s drain valve. Skipping any of these steps creates risk of burns from pressurized hot water or damage to the tank’s heating element.

To drain and access your anode rod correctly, follow these steps in order:

Step 1: Shut off the heat source

• For electric water heaters: switch off the circuit breaker dedicated to the water heater
• For gas water heaters: turn the thermostat dial to the “Pilot” or “Vacation” setting — do not simply lower the temperature, as residual flame can create steam pressure during the process

Step 2: Close the cold water supply valve

• Locate the cold water inlet valve at the top of the tank (typically a blue handle or a ball valve on the cold water line)
• Turn it fully clockwise to stop incoming water

Step 3: Relieve tank pressure

• Open any hot water faucet in the house and leave it running throughout the procedure
• This breaks the vacuum inside the tank and prevents a pressure surge when you remove the anode rod

Step 4: Drain 2 to 4 gallons from the tank

• Attach a garden hose to the drain valve at the tank’s base
• Route the hose to a floor drain, bathtub, or outside
• Open the drain valve and release approximately 2 to 4 gallons — you do not need to drain the tank completely for an anode rod replacement

Step 5: Locate the anode rod port

• On most tanks, the anode rod is located at the top center of the heater, covered by a plastic cap or a sheet metal access panel
• Some models (notably certain Rheem and AO Smith tanks) integrate the anode rod into the hot water outlet nipple — check your owner’s manual if you cannot find a dedicated port
• Use your flashlight to inspect the area and confirm the hexagonal head of the anode rod is visible

Step 6: Remove the old anode rod

• Place your 1-1/16″ socket directly on the hexagonal head
• Attach the breaker bar for maximum leverage — anode rods that have not been changed in 3 or more years are frequently seized due to mineral buildup
• Turn counterclockwise to loosen; if it will not budge, brace the tank with one hand and apply steady downward pressure on the breaker bar rather than sudden jerking force
• Once loosened, unthread the rod by hand and lift it straight out — be aware the rod may be bent or fragile if heavily corroded
• Inspect the removed rod: if it has corroded down to a thin wire core less than 1/2 inch in diameter, it has been fully consumed and the tank’s interior may already show early rust signs

Step 7: Install the new anode rod

• Wrap the threaded end of the new anode rod with 3 to 4 layers of Teflon tape, wrapping clockwise so the tape does not unravel during installation
• Lower the new rod into the port and thread it in by hand first to avoid cross-threading
• Tighten with the socket wrench until snug — typically 1/4 to 1/2 turn past hand-tight; do not overtighten, as this can crack plastic port housings
• Replace the plastic cap or access panel

Step 8: Restore water and power

• Close the drain valve and disconnect the hose
• Open the cold water supply valve fully
• Wait until water flows steadily and air-free from the open hot water faucet, then close the faucet
• Restore power (flip the breaker) or relight the pilot light according to the manufacturer’s instructions
• Check the anode rod port for any drips after 15 minutes and tighten gently if needed

What Is a Water Heater Anode Rod and Why Does It Need to Be Replaced?

A water heater anode rod is a sacrificial metal rod, made from magnesium, aluminum, or zinc-alloy, that is installed inside a tank-style water heater to prevent the steel tank walls from rusting through a process called galvanic corrosion protection. Over time, the rod deliberately corrodes instead of the tank, consuming itself until nothing remains. Once the anode rod is fully depleted, the tank walls become the target of corrosion, leading to rust, leaks, and complete tank failure — which is why timely replacement is essential.

Hãy cùng khám phá the science and material differences behind anode rods so you can make the most informed replacement choice:

What Is the Purpose of an Anode Rod in a Water Heater?

An anode rod functions as an electrochemical shield inside your water heater, using the principle of galvanic corrosion to sacrifice itself and protect the steel tank walls from rust. Without an active anode rod, a standard steel-lined water heater tank will begin corroding from the inside within 1 to 3 years, dramatically shortening its lifespan.

Cụ thể, here is how the galvanic protection process works:

• Water inside a tank is a weak electrolyte that allows electrical current to flow between dissimilar metals
• The anode rod (magnesium or aluminum) is a more reactive metal than the steel tank lining
• Because the anode rod is more reactive, it oxidizes (corrodes) preferentially, drawing corrosive electrochemical activity away from the steel
• This process is identical in principle to how zinc-coated galvanized steel protects bridges and pipelines

Why complete depletion causes tank failure:

• When the anode rod is fully consumed, the steel tank becomes the “sacrificial” element by default
• Rust forms on the tank’s inner glass lining wherever it is chipped or imperfect (from sediment abrasion or thermal expansion cracks)
• Once rust penetrates the steel, the tank develops pinhole leaks that cannot be repaired cost-effectively

The financial case for anode rod maintenance:

• Replacing an anode rod costs $20 to $50 for the rod plus labor (or $0 if DIY)
• A new water heater costs $500 to $2,000+ installed
• Maintaining the anode rod can extend a tank’s functional lifespan by 5 to 10 years beyond its base design life

According to research published by the American Council for an Energy-Efficient Economy (ACEEE, 2022), the average residential water heater without anode rod maintenance fails at 6 to 8 years, while maintained units regularly exceed 12 to 15 years of service life.

What Are the Different Types of Anode Rod Materials?

There are three primary anode rod materials used in residential water heaters: magnesium offers the highest protection for soft water, aluminum provides durability and affordability for hard water, and zinc-alloy (zinc/aluminum blend) controls sulfur-related odors. Choosing the wrong material for your water chemistry can mean the rod depletes too fast, provides inadequate protection, or fails to address specific water quality problems.

Tiếp theo is a detailed comparison of each material type to help you select the right replacement:

Magnesium Anode Rod:

• Provides the highest level of electrochemical protection of the three types
• Ideal for soft water (low mineral content, low hardness)
• Corrodes faster than aluminum, meaning it may need inspection more frequently in very soft water areas
• Produces a slightly higher electric potential, which makes it the most effective at attracting corrosive ions away from the tank
• Best for: homes with municipal soft water or filtered water systems

Aluminum Anode Rod:

• More resistant to rapid corrosion, making it longer-lasting in high-mineral (hard water) environments
• Lower material cost than magnesium
• Less electrically active than magnesium, so protection is slightly reduced but adequate for hard water conditions where the mineral scale itself provides some buffering
• Note: aluminum ions released into water have raised concerns in some studies about long-term water quality; use a flush routine if you have an aluminum rod installed
• Best for: homes in hard water regions (much of the Midwest and Southwest United States)

Zinc-Alloy (Zinc/Aluminum) Anode Rod:

• Contains approximately 10% zinc blended with aluminum
• The zinc component actively suppresses the growth of sulfur-reducing bacteria inside the tank, which are responsible for the hydrogen sulfide (rotten egg) odor in hot water
• Does not provide significantly stronger corrosion protection than pure aluminum, but eliminates the odor problem without requiring water chemistry adjustments
• Best for: homes where hot water has a noticeable sulfur or egg smell, particularly common with well water sources

This table compares the three anode rod materials across five performance criteria to guide your replacement selection based on local water conditions.

How Do You Know When an Anode Rod Needs to Be Replaced?

You know an anode rod needs replacement when you observe one or more of these signs: hot water that smells like sulfur or rotten eggs, water with a rusty brown or orange tint, popping and rumbling noises from the tank during heating cycles, or when the heater has exceeded 3 to 5 years without an anode rod inspection. These signals indicate the anode rod is either fully depleted or so heavily corroded that it can no longer protect the tank effectively.

Dưới đây is how to diagnose anode rod condition accurately, both through observable symptoms and physical inspection:

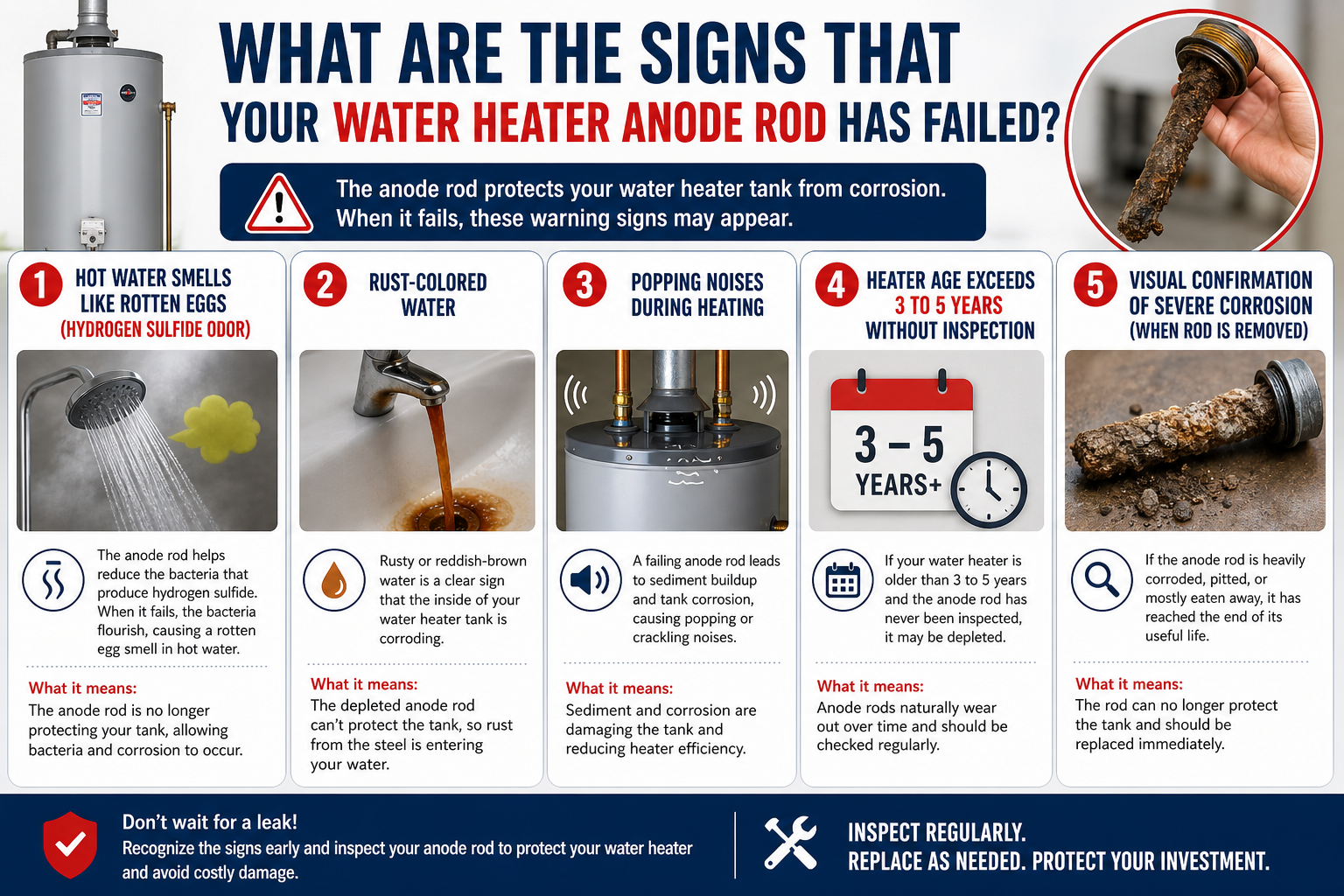

What Are the Signs That Your Water Heater Anode Rod Has Failed?

Five key signs indicate a failed or depleted anode rod: rotten egg odor from hot water, rust-colored water, popping noises during heating, heater age exceeding 3 to 5 years without inspection, and visual confirmation of severe corrosion when the rod is physically removed. Each sign corresponds to a distinct failure mode that should prompt immediate inspection.

Cụ thể, here is what each warning sign means and how to evaluate it:

Sign 1: Hot water smells like rotten eggs (hydrogen sulfide odor)

• Caused by sulfur-reducing bacteria (Desulfovibrio) that thrive in warm, stagnant water when the anode rod is depleted
• A magnesium anode rod can also accelerate this reaction in water with naturally high sulfate content
• Solution: replace with a zinc-alloy anode rod and flush the tank with a diluted hydrogen peroxide solution

Sign 2: Rust-colored or brown hot water

• Indicates the steel tank interior is actively corroding, meaning the anode rod has been depleted long enough for rust to begin forming
• If only hot water is discolored (not cold), the source is the tank — not the pipes
• This is a serious sign that warrants immediate inspection; if the tank itself is rusted through, anode rod replacement alone will not save it

Sign 3: Popping, rumbling, or banging noises from the tank

• Caused by sediment buildup (calcium carbonate scale) on the tank’s heating element or floor
• Sediment forms faster when there is no active anode rod because the tank’s inner surface is not electrochemically protected
• The noise occurs when water trapped under sediment layers superheats and bursts through

Sign 4: Tank age exceeds 3 to 5 years without anode rod inspection

• Even if none of the above symptoms are present, a tank in this age range should be inspected as a preventive measure
• Anode rods in areas with very soft water or water softener systems may deplete in as little as 1 to 2 years

Sign 5: Visual inspection of the removed rod

• A healthy anode rod should still have visible metal material around a central steel cable core
• Replace immediately if the rod has corroded to less than 1/2 inch in diameter, is coated in a thick, crusty calcium deposit, or shows significant bending or segmentation
• A rod that has been reduced entirely to its steel wire core provides zero remaining protection

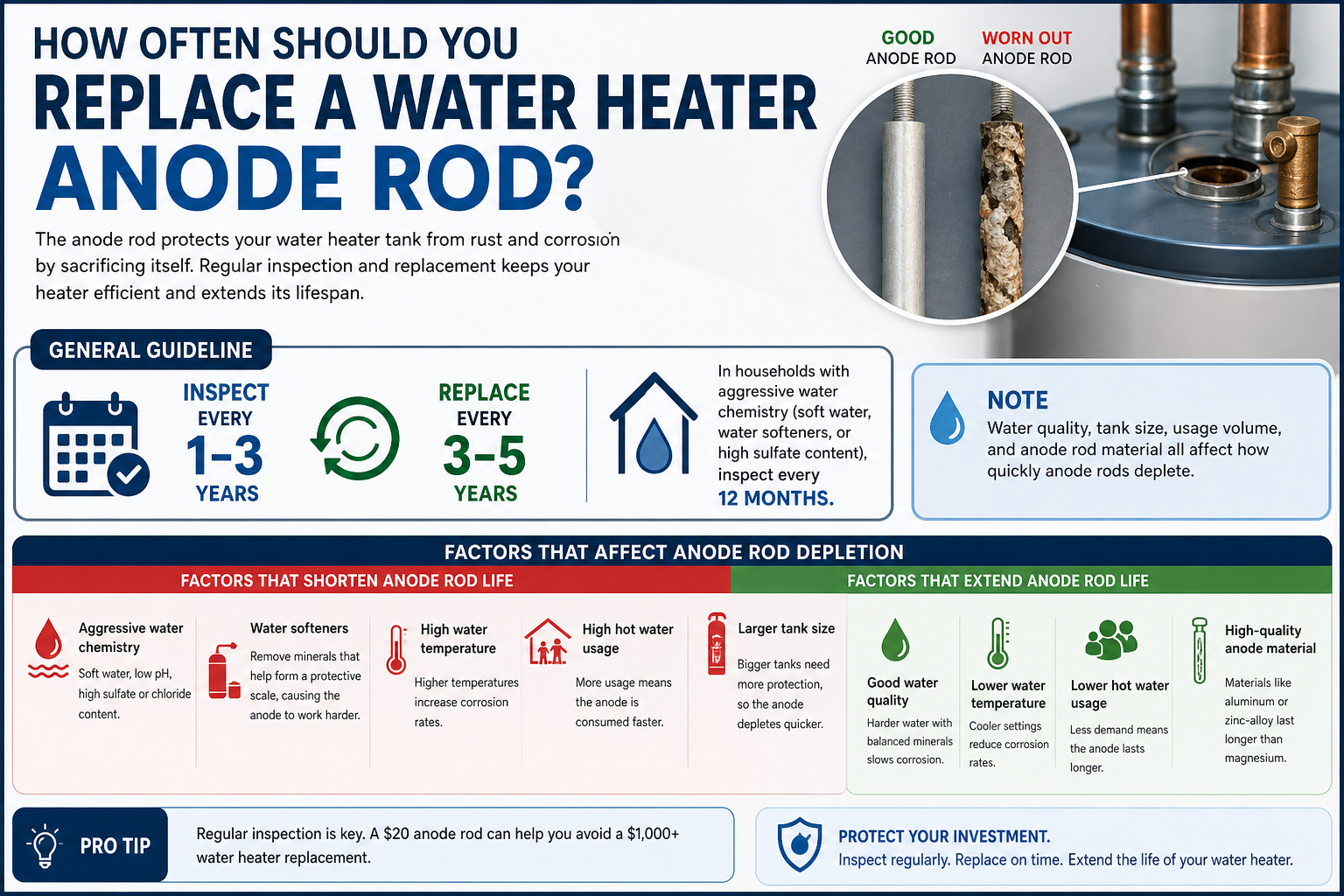

How Often Should You Replace a Water Heater Anode Rod?

You should inspect your water heater anode rod every 1 to 3 years and replace it every 3 to 5 years under normal conditions, though water quality, tank size, usage volume, and anode rod material all affect this timeline. In households with aggressive water chemistry (soft water, water softeners, or high sulfate content), inspection intervals should be shortened to every 12 months.

Bên cạnh đó, consider these specific factors that accelerate or slow anode rod depletion:

Factors that shorten anode rod lifespan:

• Soft water or low mineral content: Fewer dissolved minerals mean less buffering, causing the anode rod to corrode faster
• Water softeners using salt (sodium ion exchange): These systems increase water conductivity significantly, which dramatically accelerates magnesium anode rod depletion, sometimes reducing lifespan to under 1 year
• High water temperature settings: Operating the heater above 140°F (60°C) increases electrochemical activity and speeds corrosion
• High daily usage volume: More water turnover means more fresh corrosive water contacts the anode rod

Factors that extend anode rod lifespan:

• Hard water with high mineral content: Calcium and magnesium in the water create a natural scale buffer inside the tank
• Aluminum or zinc-alloy rod material: These corrode more slowly than magnesium
• Lower water temperature settings (120°F / 49°C): Reduces reaction rates across the entire system
• Powered (impressed current) anode rod: Does not deplete at all and requires only electrical function verification

Boolean: Should you replace the anode rod even if the heater seems to be working fine?

Yes, absolutely. A water heater can function normally in terms of heating water even while the anode rod is fully depleted — the heating element or burner has no connection to the anode rod’s condition. The absence of visible symptoms does not mean the tank is being protected. Replacing a $20 to $50 anode rod proactively is a fraction of the $800 to $2,000 cost of a new water heater installation, making preventive replacement the economically rational choice in virtually every scenario.

According to a field study by the Plumbing Heating Cooling Contractors Association (PHCC, 2020), approximately 70% of water heater failures that occur before the manufacturer’s expected lifespan are attributable to depletion of the anode rod going undetected for more than 5 years.

Is a Powered Anode Rod a Better Alternative to a Sacrificial Anode Rod?

A powered anode rod can be a better choice than a sacrificial anode rod in specific situations, particularly for homes with water softeners, aggressive soft water chemistry, or tanks where frequent rod replacement is impractical. However, for most standard residential applications with normal water conditions, a properly maintained sacrificial magnesium or aluminum anode rod remains the simpler, lower-cost, and equally effective solution.

Tiếp theo, here is an in-depth comparison of how powered anode rods differ and when each type makes more practical sense:

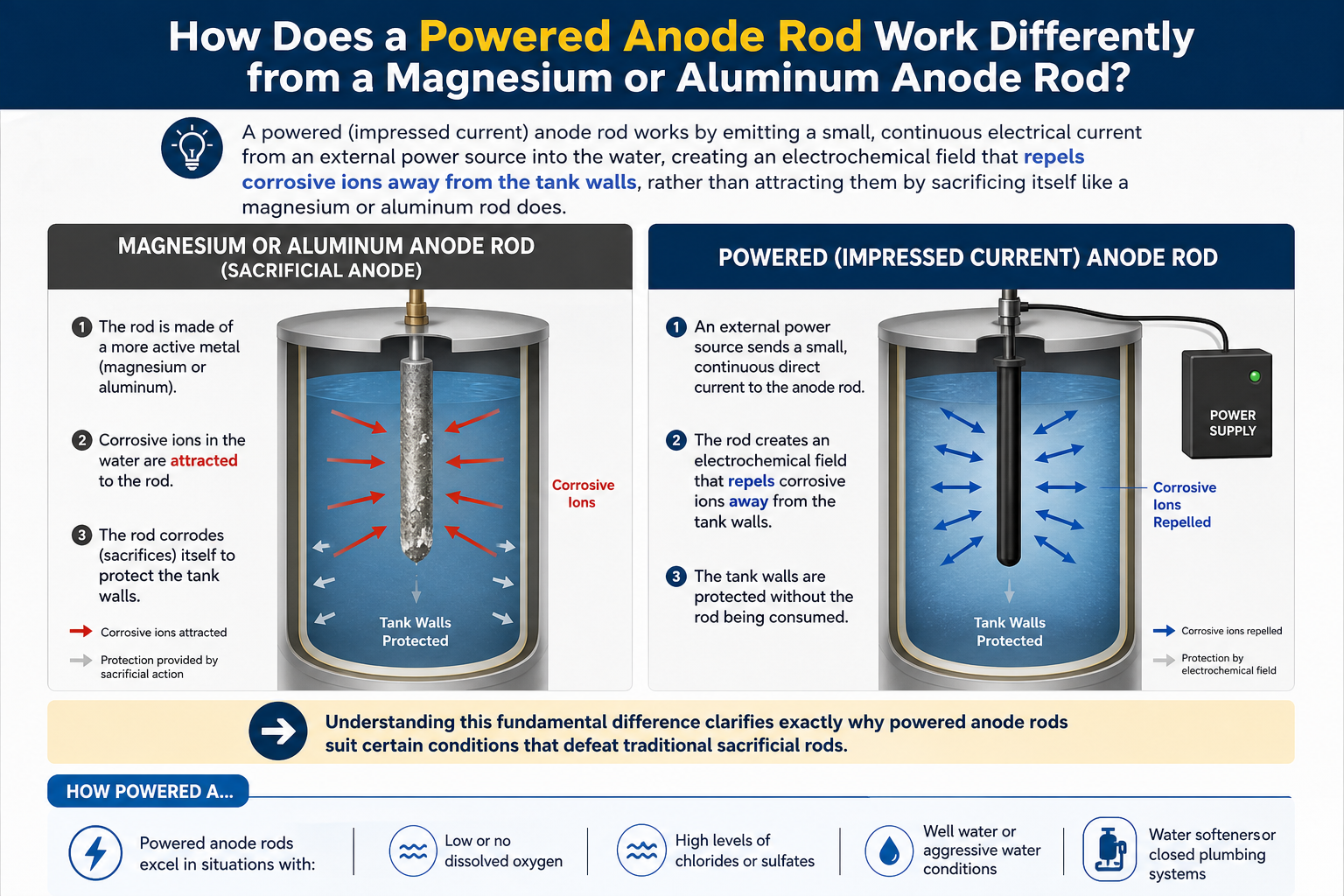

How Does a Powered Anode Rod Work Differently from a Magnesium or Aluminum Anode Rod?

A powered (impressed current) anode rod works by emitting a small, continuous electrical current from an external power source into the water, creating an electrochemical field that repels corrosive ions away from the tank walls, rather than attracting them by sacrificing itself like a magnesium or aluminum rod does.

Câu chuyển tiếp: Understanding this fundamental difference clarifies exactly why powered anode rods suit certain conditions that defeat traditional sacrificial rods.

How powered anode rods work:

• Connected to a standard 120V outlet via a low-wattage adapter (typically under 1 watt)
• Emit a micro-level direct current that makes the tank’s steel walls cathodically protected
• The rod itself (usually titanium or mixed metal oxide) does not corrode and does not need periodic replacement
• Protection is active and consistent regardless of water chemistry changes

Advantages over sacrificial anode rods:

• No periodic replacement required (only inspect electrical function annually)
• Does not produce calcium deposits or scale acceleration associated with some magnesium rods
• Highly effective in soft water and water-softened environments where magnesium rods deplete within months
• Compatible with large-capacity commercial-grade tanks where sacrificial rod access is difficult

Disadvantages and limitations:

• Initial cost is $50 to $200, compared to $15 to $50 for a sacrificial rod
• Requires a nearby power outlet (may require electrician work in some installations)
• Not universally compatible with all tank models — verify thread size and port type before purchasing
• If power is interrupted for extended periods, protection ceases entirely

Important note regarding combo anode rods: Some Bradford White, Rheem, and State water heater models use a combo anode rod design, where the anode rod is integrated directly into the hot water outlet port nipple. If your tank uses this configuration, you must purchase a combo-style powered or sacrificial replacement. Installing a standard threaded rod in a combo port will block the hot water outlet and may void the manufacturer’s warranty.

Does Water Hardness or Water Chemistry Affect How Long an Anode Rod Lasts?

Yes, water chemistry is one of the most significant factors determining anode rod lifespan, with soft water and water softener systems causing the fastest depletion, while moderately hard water provides a natural buffer that slows rod corrosion.

Câu chuyển tiếp: Here is how specific water chemistry variables affect your anode rod selection and replacement schedule.

Soft water (low mineral content, pH below 7.0):

• Highly conductive and corrosive, causes magnesium rods to deplete up to 2 to 3 times faster than in hard water
• Switch to aluminum or powered anode rod if water hardness is below 3 grains per gallon (gpg)

Water softeners using salt-based ion exchange:

• Sodium ions replace calcium and magnesium, creating a more electrically conductive solution
• Accelerates magnesium anode rod depletion dramatically — some reports indicate full depletion within 6 to 12 months
• Recommendation: switch to an aluminum anode rod or a powered impressed current anode rod when a water softener is in use

High sulfate content (well water):

• Promotes sulfur-reducing bacteria growth, causing rotten egg odors in hot water
• Zinc-alloy anode rods reduce this effect by releasing zinc ions that inhibit bacterial activity
• Check your local water quality report (available from your municipal water supplier or via a private well test kit) to measure sulfate concentration (SO4²) levels above 150 mg/L indicate a zinc-alloy rod is warranted

High pH (alkaline water above 8.5):

• Slows galvanic activity and may extend anode rod lifespan slightly
• However, alkaline water with high mineral content can also contribute to rapid scale buildup inside the tank that traps sediment and accelerates localized corrosion at the tank floor

Practical recommendation: Before purchasing a replacement anode rod, request your local municipal water quality report (required to be publicly available under the Safe Drinking Water Act for U.S. residents) or purchase a home water test kit to measure hardness (gpg), pH, and sulfate content. This single step ensures you select the right rod material and set an accurate inspection interval for your specific water conditions.
